3 Rows HD High Density D-SUB Connectors 15pin 26pin 44pin 62Pin

Brand Name : FUYCONN

Model Number : FUYDR1012C

Certification : UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004

Place of Origin : China

MOQ : 1000pcs

Price : Negotiable

Payment Terms : T/T or Paypal

Supply Ability : 1 million/ month

Delivery Time : 7-10 days

Packaging Details : Vacuum Tray + Carton

Product Name : D-sub Connectors

Product Line : High Density D-SUB Connector

Type : Right Angle PCB Connector

Number of Terminal : 14/26/44/62 pin

Gender : Male

Mounting : Revite & Locked Screws

Contact Now

3 rows HD 15pin 26pin 44pin 62Pin High Density D-SUB Connector, (8.89mm) 15/26/44/62Pin Male Right Angle PCB D-SUB HD Connector

D-type connectors most commonly consist or two and sometimes more parallel rows of connections. The connectors have a D-format metal shell. This not only provides mechanical strength to the connector, but it also provides some limited screening as well - the metal shells of the plug and socket make contact to provide screening. Also the panel mounting connectors are typically secured to the panel using nuts that have an additional thread that allows the mating connector to be secured to it to prevent it working loose. Additionally the free connectors can have backshells that can provide screening and can be connected to the cable screen, or if plastic, they can provide protection. Strain relief on the cable is also provided.
The pins in the more common connector types with two rows of pins (e.g. 9, 15, 25 and 37 way) are spaced approximately 0.108 inch (2.74 mm) apart with the rows spaced 0.112 inch (2.84 mm) apart. High pin counts and higher pin densities can be achieved using more rows of pins.
Product Feature
1. Product Name:
D-SUB Connector
2. Product Line:
PCB High Density Connector
3. No. of pin
15pin 26pin 44pin 62pin
4. Material:
PBT
5.Contact Type
Right Angle
6. Gender
Male

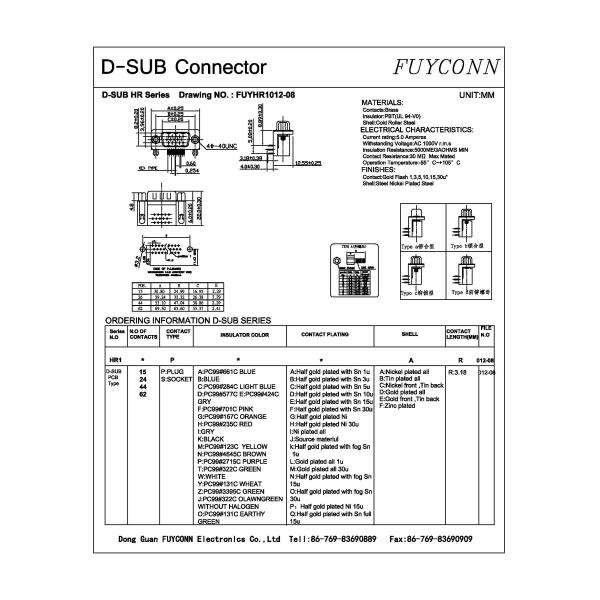

Data Sheet

3 Rows HD High Density D-SUB Connectors 15pin 26pin 44pin 62Pin


Product Tags:

3 Rows D-SUB Connectors



High Density D-SUB Connectors



62Pin D-SUB Connector


Quality 3 Rows HD High Density D-SUB Connectors 15pin 26pin 44pin 62Pin for sale

3 Rows HD High Density D-SUB Connectors 15pin 26pin 44pin 62Pin Images
